Machines Product info

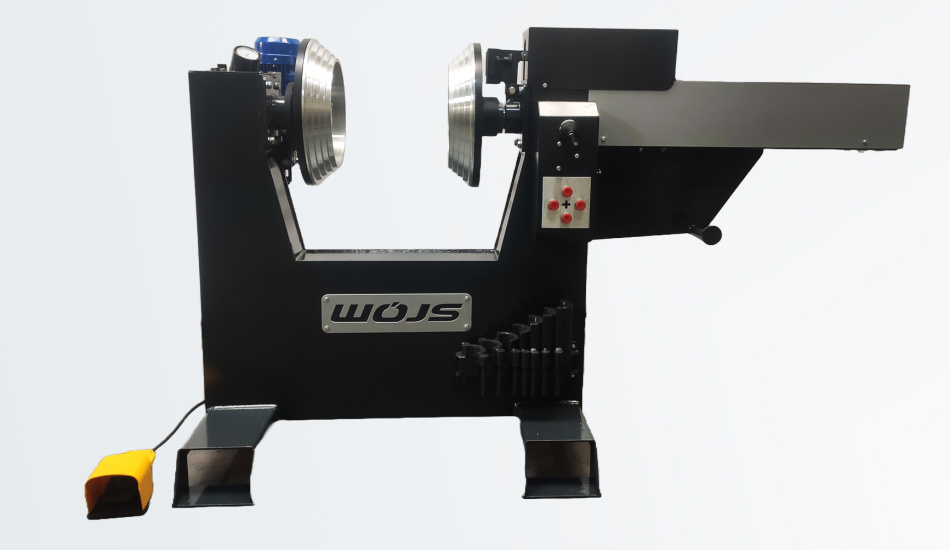

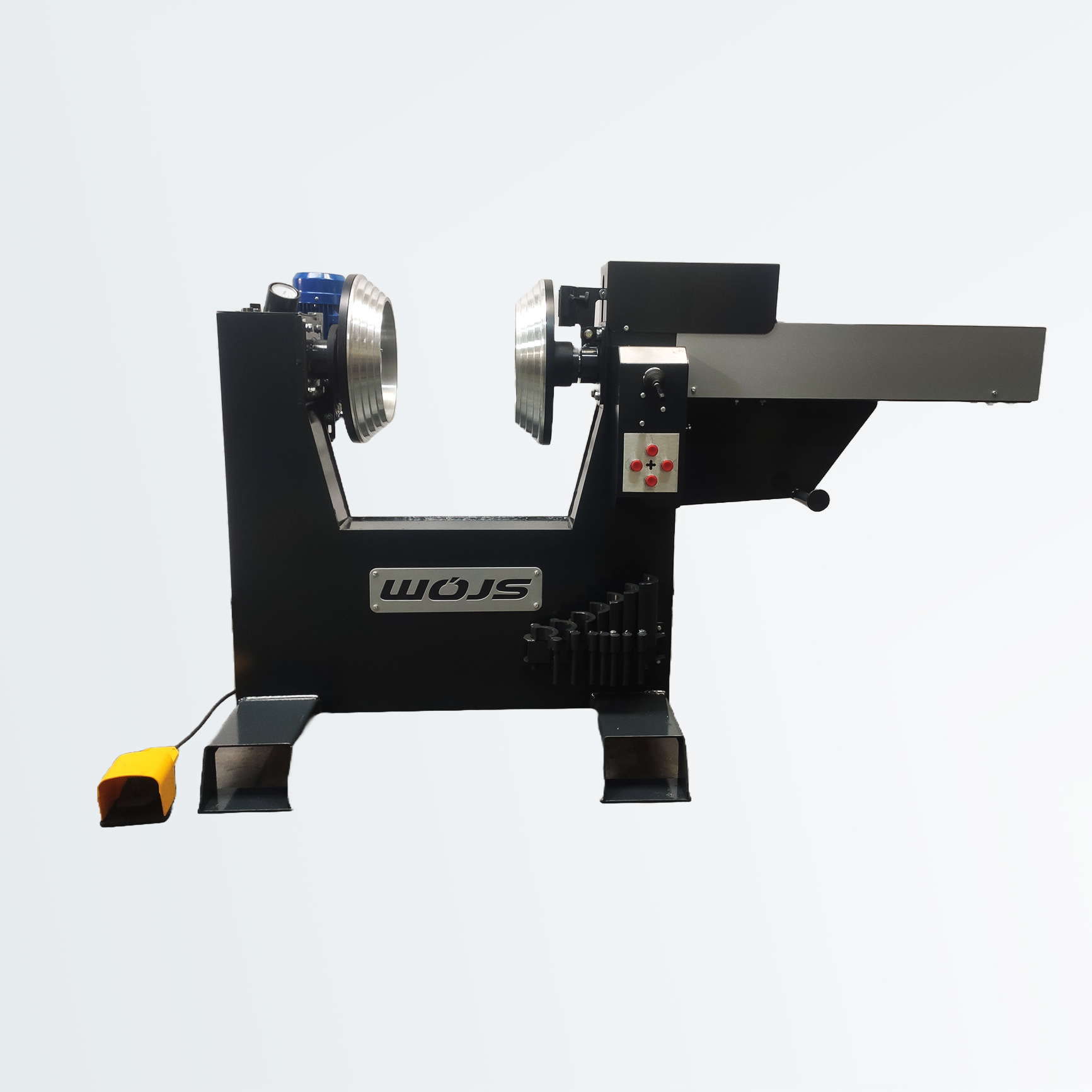

WOJS AIRSYSTEM tyre testing machine

WOJS AIR-SYSTEM tyre testing machine is for checking used tyres before they are reused or retreaded.

Depending on an option, the machine comes with two or three pairs of excellent quality discs of aluminium provided with an easy and safe fitting system.

Main features

  • very solid and durable structure
  • ergonomic design facilitating operation and handling
  • great performance
  • adjustable inflation pressure up to 3 bars (43psi)

Set Contents

  • TRUCK AIR TEST TRUCK
  • 3 pairs of pressure plates: Pair 1: 13-17 inches, Pair 2: 17-20 inches, Pair 3: 20-22 inches
  • 7 pressure locks: No. 1: 25 mm; No. 2: 50 mm, No. 3: 75 mm, No. 4: 100 mm; No. 5: 125 mm No. 6: 150 mm No. 7: 175 mm
  • Foot switch

EXTRA OPTIONS (on request)

  • adjustable rotation speed
  • set of customized discs separate for each tyre size

Basic technical specification

Pneumatic system
Required feed pressure 6-8 bars (87-130 psi)
Maximum inflation pressure 3 bar (43 psi)
Electric system
Power supply 230V/110V
Engine power 0.37 kW

Operating dimensions

Height 150 cm
Width 80 cm
Length 210 cm
Weight 350 kg

Interested to order a machine? This email address is being protected from spambots. You need JavaScript enabled to view it.
