Machines Product info

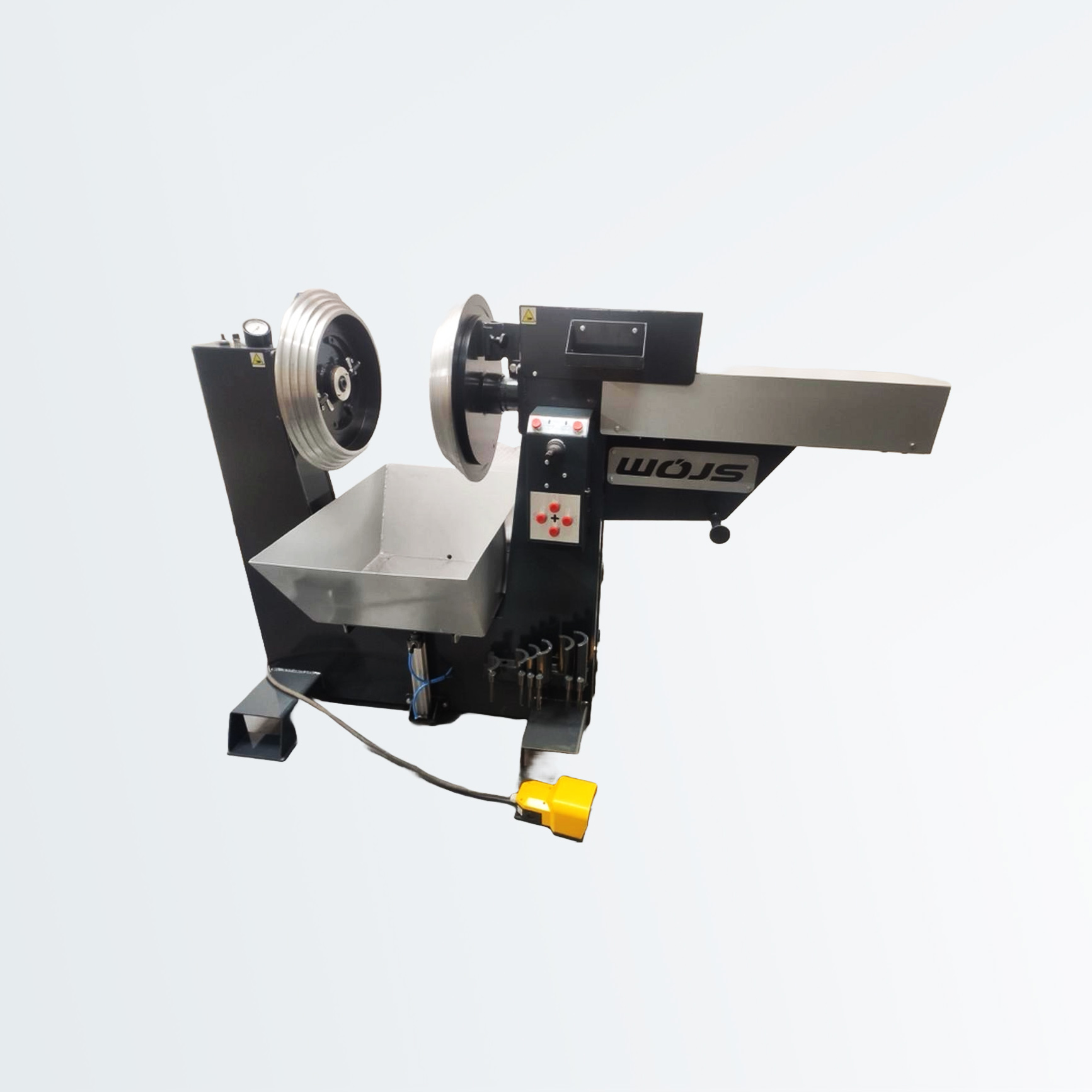

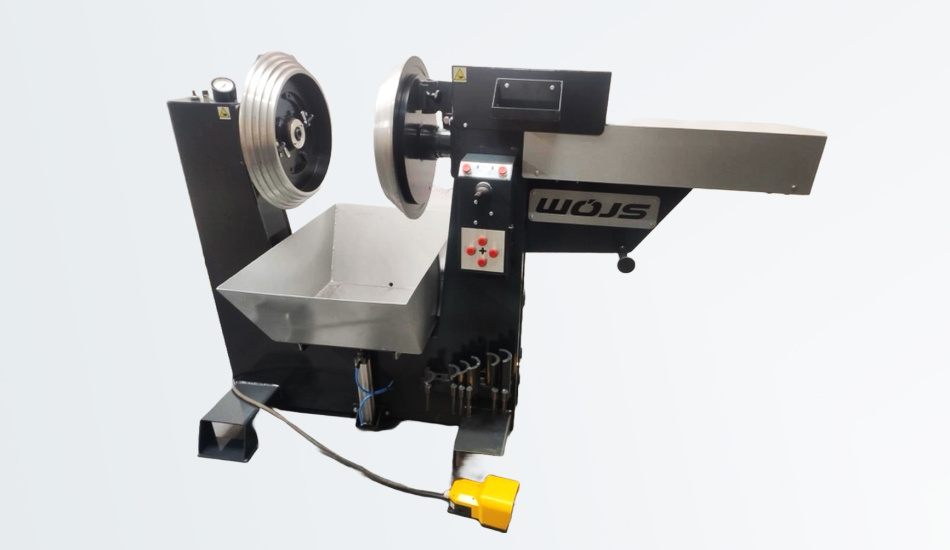

WOJS AQUASYSTEM tyre testing machine

WOJS AQUASYSTEM tyre testing machine is a device for checking used tyres before they are reused or retreaded.

Depending on an option, the machine comes with two or more excellent quality discs of aluminium provided with an easy and safe fitting system. For even more precise detection of the smallest air leaks the machine is equipped with a pneumatically elevated water bucket.

Main features

  • very solid and durable structure
  • ergonomic design facilitating operation and handling
  • great performance
  • adjustableadjustable rotation speed from 0 up to 20 rpm
  • adjustable inflation pressure up to 3 bars (43psi)

Set Contents

  • WOJS CONTROL machine
  • 3 pairs of pressure plates: Pair 1: 13-17 inches, Pair 2: 17-20 inches, Pair 3: 20-22 inches
  • 7 pressure locks: No. 1: 25 mm; No. 2: 50 mm, No. 3: 75 mm, No. 4: 100 mm; No. 5: 125 mm No. 6: 150 mm No. 7: 175 mm
  • Foot switch

Basic technical specification

Pneumatic system
Required feed pressure 6-8 bars (87-130 psi)
Maximum inflation pressure 3 bar (43 psi)
Electric system
Power supply 230V/110V
Engine power 0.37 kW

Operating dimensions

Height 160 cm
Width 90 cm
Length 220 cm
Weight 450 kg
