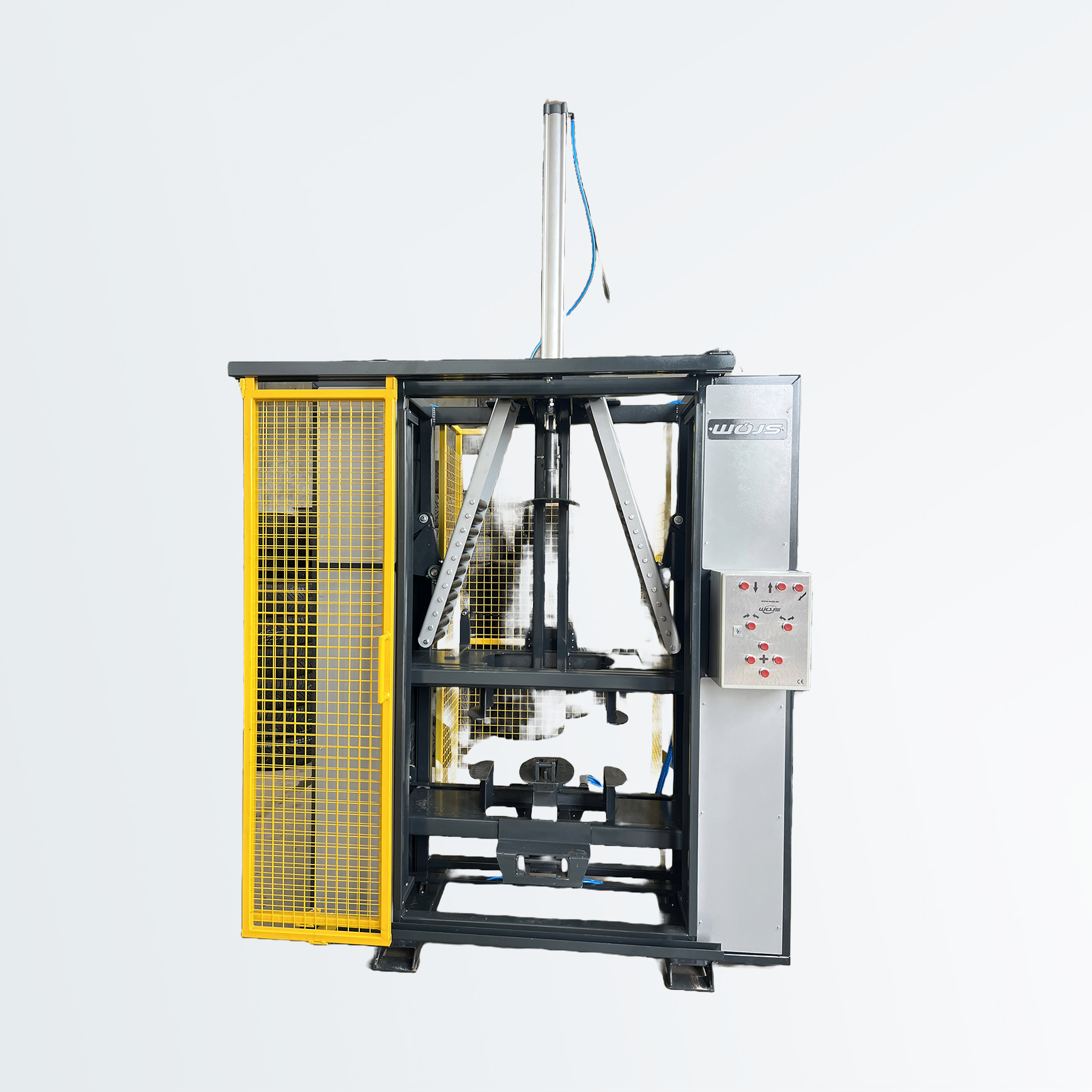

WOJS PACK II tyre tripling machine

WOJS PACK || tyre tripling machine is used for inserting tyres one into another in order to optimize transport and/or storage cost.

As all our tripling machines depending on suitable tyre size selection it can easily make 5-tyre packs with no damage to the tyres.

Thanks to its optimized dimensions and design it can be used for all tyre sizes in the range of 12-22 inches. For this purpose it has three easily detachable table extensions to be used for different tyre size. While all our machines are safe for the operator, WOJS PACK II is also equipped with specially designed safety housing increasing operator’s safety. The machine can come in two versions: pneumatic or hydraulic. After unloading tyre bundles can be easily and safely unpacked with WOJS UNPACK tyre unpacking machine also available.

WOJS PACK II tyre tripling machine add

Main features

  • very solid and durable structure
  • ergonomic design facilitating operation and handling
  • great performance of approx. 150 tyres per hour
  • suitable for all tyre sizes in the range 12-22 inches
  • fitted with a safety housing
  • comes with a lock preventing from unauthorized use

Basic technical data

Pneumatic system
Required feed pressure 9-10 bar (130-145 psi)

Dimensions in working mode

Height 300 (226)* cm
Width 130 cm
Length 186 cm
Weight 600 kg

*) Height with the top cylinder taken off for transport
